HelixSR mod brings Nvidia DLSS to AMD gaming handhelds

A modder has done something AMD and Nvidia both spent years insisting couldn’t happen cleanly: run Nvidia’s DLSS upscaler on an AMD graphics chip, with no Nvidia hardware, drivers or CUDA in sight. The mod is called HelixSR, it’s free, and early testers on the Asus ROG Ally X and Steam Deck are already running it.

What HelixSR actually does

HelixSR works as a replacement for AMD’s FSR 3.1 upscaler in Direct3D 12 games, running the neural network from DLSS 3.7 Preset E through ordinary DirectX 12 compute shaders instead of AMD’s own reconstruction method. The game itself doesn’t know anything has changed. Games continue to behave as though they are communicating with FSR 3.1, and HelixSR intercepts that process and replaces the image reconstruction stage with the DLSS model.

That sleight of hand matters because of what it avoids. This approach means the technology does not require Nvidia drivers, CUDA or ROCm, and it can also operate on Linux through Proton and vkd3d proton, making Steam Deck one of the main devices that could benefit. The mod was released two days ago on GitHub by developer lonewolf0622, as a drop-in replacement for AMD’s FSR 3.1 upscaler on Direct3D 12 that runs Nvidia’s DLSS neural network on AMD GPUs instead.

The choice of DLSS version isn’t an accident either. HelixSR uses the final CNN based reconstruction model introduced with DLSS 3.7 before Nvidia moved to Transformer based models with DLSS 4, and the older CNN model requires less computing power, making it potentially better suited to devices such as Steam Deck and ROG Ally. Handheld APUs have nowhere near the compute budget of a desktop RTX card, so picking the lightest DLSS model Nvidia ever shipped, rather than the newer and heavier transformer-based one, is the whole point.

The early numbers

Benchmarks for a two-day-old GitHub mod should be read as exactly that: early. But the first figures circulating from community testers are striking enough to explain the attention. One widely shared breakdown of frame processing time put DLSS 3.7 at 3.5 ms at 800p compared to 4.5 ms for FSR 4, and 7 ms at 1080p compared to 11 ms for FSR 4. A separate hands-on report described the gap in frame rate terms, noting a noticeable FPS increase and shorter upscaler time with DLSS 3.7 than with FSR 4.1.1, with the resulting FPS closer to FSR 3.1.5’s performance but with DLSS’s enhanced visuals.

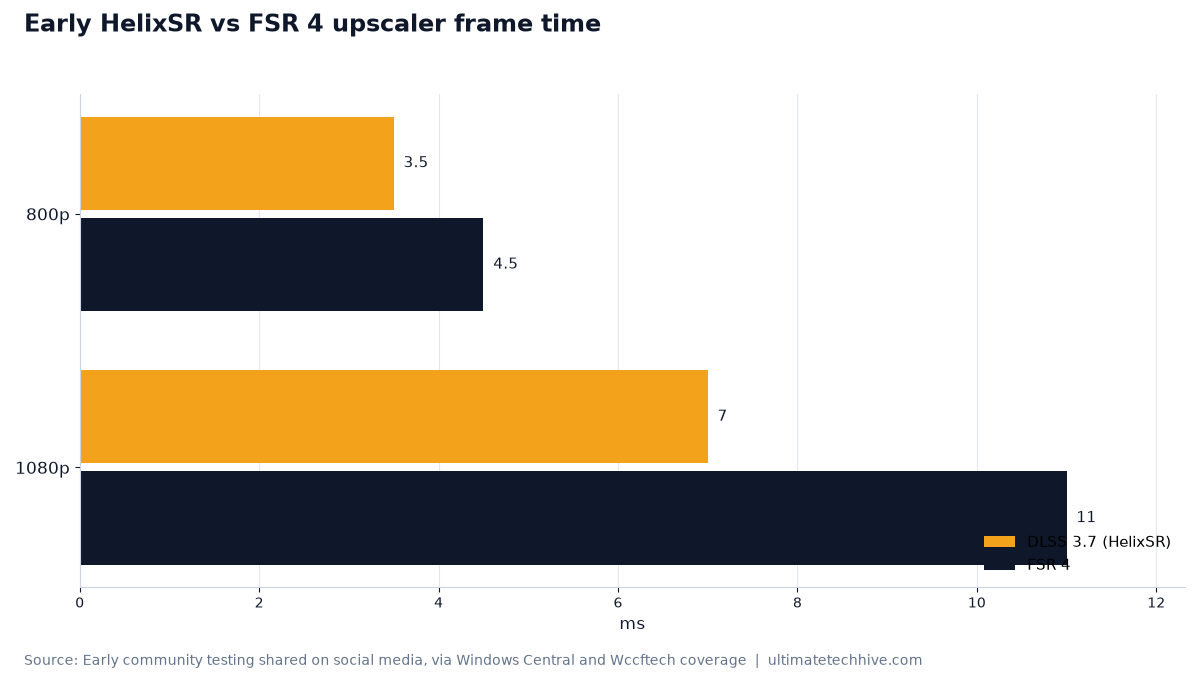

Early HelixSR vs FSR 4 upscaler frame time

Image quality is the part nobody agrees on yet. Initial impressions of visual quality are mixed: some testers consider HelixSR slightly behind FSR 4 but clearly better than FSR 3, while others believe the DLSS 3.7 model can look better than FSR 4 in certain situations. One tester who compared both mods directly in the same game found a more specific limit: HelixSR needs more work, and playing Spider-Man 2 at 1440p with HelixSR looked worse than FSR4-r11 even at 1080p, which produced a much cleaner output. That’s a reminder that “faster” and “better looking” aren’t the same claim, and HelixSR’s advocates are mostly making the first one so far.

Installation is reportedly simple. You download the mod, run it, let it build, then hit Enter whenever the tool lists a game you’d like to install DLSS 3.7 on, and the installer tells you which upscaler to pick in-game. No recompiling, no registry edits, just a GitHub download and a few prompts.

Why AMD’s own handhelds needed this workaround

The reason a fan-made DLSS injector is news at all comes down to what AMD hasn’t shipped yet. AMD’s own machine learning upscaler, FSR 4, is officially limited to RDNA 4 GPUs, leaving the Steam Deck’s RDNA 2 chip and even RDNA 3-based handhelds like the ROG Ally X stuck with the older, visibly inferior FSR 3, which still relies on temporal upscaling. AMD has acknowledged the gap and is working on it: the company has confirmed that RDNA 3 APUs are still on its roadmap, saying it is developing lightweight machine learning models for APU players, which suggests integrated graphics will need a separate path rather than the model used by discrete Radeon RX 7000 cards.

That timeline is still loose. AMD has laid out plans to expand FSR 4 upscaling across existing APUs, gaming laptops, and handhelds by the end of the year, with a lighter FSR 4 model built specifically for APUs and lower-power SoCs. But the chip that actually ships inside today’s flagship handhelds is further behind than you’d expect. Even though we now have powerful RDNA 3.5-based Radeon 8060S and Radeon 8050S integrated GPUs, they still work on the INT8 data type compared to the latest RDNA 4 series, and AMD has not confirmed exact models or dates. Desktop RDNA 3 cards only got official FSR 4.1 support recently, and RX 7000 series GPUs got FSR 4.1 support in a driver update, with RX 6000 series slated to follow in early 2027. Handheld APUs are behind even that queue.

The table below lays out where the three most relevant handhelds sit on this ladder, and why HelixSR is landing on exactly the devices AMD’s roadmap hasn’t reached yet.

Handheld	GPU architecture	Official FSR 4 status	Starting price (USD)
Steam Deck OLED	RDNA 2	Not yet supported; architecture predates FSR 4’s INT8/FP8 requirements	$549 (512 GB)
ROG Ally X	RDNA 3	Lightweight model in development, no date confirmed	$799 (1 TB)
ROG Xbox Ally X	RDNA 3.5	Likely needs similar adaptation as RDNA 3, no date confirmed	$999.99 (1 TB)

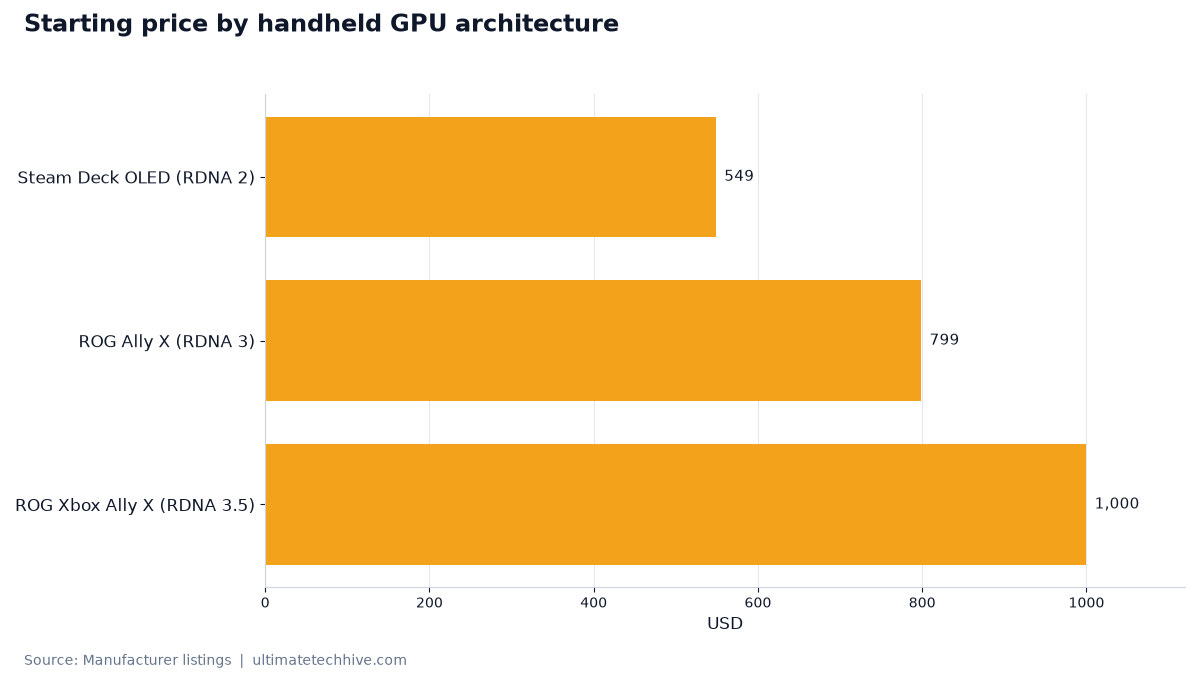

Starting price by handheld GPU architecture

Price, availability and who should care

HelixSR costs nothing beyond whatever handheld you already own. It’s distributed on GitHub, needs no Nvidia hardware, and works on Windows-based handhelds like the ROG Ally X as well as the Steam Deck through Proton. The catch is scope: it only intercepts the FSR 3.1 path in Direct3D 12 titles, so it won’t touch DirectX 11 or Vulkan-only games, and it doesn’t help AMD’s own desktop cards, which already have a real FSR 4.1 upgrade path.

This is squarely a handheld story. If you own a Steam Deck or ROG Ally X and have been living with FSR 3’s smeary edges in demanding games, HelixSR is worth a look precisely because it costs you nothing to try and nothing to revert. If you own an RDNA 4 desktop card, none of this applies to you: you already have native FSR 4, and Nvidia owners already have native DLSS. The appeal is narrow but real for anyone stuck on older AMD silicon with a backlog of demanding Direct3D 12 games.

Worth flagging too: this isn’t the first time the community has forced Nvidia-grade or AMD-ringfenced features onto hardware that was never meant to run them. Modders have spent the past year pushing leaked FSR 4 DLLs onto RDNA 3.5 handhelds ahead of any official AMD support, and similar efforts have ported DLSS Multi-Frame Generation to GPUs Nvidia never sanctioned for it. HelixSR fits a pattern: official upscaler roadmaps move on their own schedule, and handheld owners keep finding ways to not wait for them.

What this means for you

If you’re running a ROG Ally X, Steam Deck or similar AMD handheld and play mostly Direct3D 12 titles, HelixSR costs nothing to test: grab it from GitHub, pick a supported game, and compare it against whatever FSR mode you’re using now. Don’t expect miracles on image quality; early testers disagree on whether it beats FSR 4, so judge it in your own games rather than trusting one benchmark chart. If you’re shopping for a new handheld specifically because of upscaling quality, hold off on a purchase decision until AMD actually ships its promised lightweight FSR 4 model, since an unofficial mod is not a substitute for a supported driver path, however good the early frame-time numbers look.
